Hauv kev tsim hluav taws xob cua sov raj, lub raj txo qis yog cov txheej txheem tseem ceeb uas txiav txim siab qhov kev ua tau zoo ntawm cov khoom siv . 18-Tubular Rhaub Shrinking Tshuab feem ntau muaj nyob rau hauv 8-theem, 12-theem, thiab 18-theem configurations.
Ntau -chaw nres tsheb tube txo cov cav tov, tshwj xeeb tshaj yog 18-chaw nres tsheb tsim, yog cov cuab yeej tseem ceeb uas txhawb nqa cov txheej txheem tseem ceeb no los ntawm "kev ua haujlwm ntxhib" mus rau "precision forming."
I. Kev sib piv ntawmswagingtshuab thiab18- chaw nres tshebtube shrinking tshuab
Txhawm rau nkag siab qhov zoo ntawm ntau- chaw nres tsheb tshuab, peb yuav tsum xub nkag siab txog cov kev txwv ntawm cov txheej txheem ib txwm muaj. Ib txwm siv lub tshuab swaging muaj tsawg qhov chaw, txhais tau hais tias cov tubing yuav tsum ncav cuag lub hom phiaj txoj kab uas hla ntawm cov kauj ruam deformation tsawg heev.
Qhov no ua rau ob qho teeb meem loj:
Kev puas tsuaj ntawm cov khoom tseem ceeb: Lub siab deformation tus nqi (txo txoj kab uas hla) nyob rau hauv txhua kauj ruam ua rau hnyav stretching ntawm cov hlau lattice, uas ua rau cov concentrated nyob rau hauv kev nyuaj siab, microcracks, thiab tsis sib xws phab ntsa thickness.
Tsawg tswj precision: Loj- ncua kev deformation yog qhov nyuaj rau kev tswj hwm qhov tseeb, ua rau muaj kev hloov pauv loj hauv qhov sib npaug, qhov ncaj, thiab qhov kawg ntawm cov raj, ua rau kev ua haujlwm tsis sib xws ntawm cov khoom siv hluav taws xob cua sov.
Daim ntawv thov:

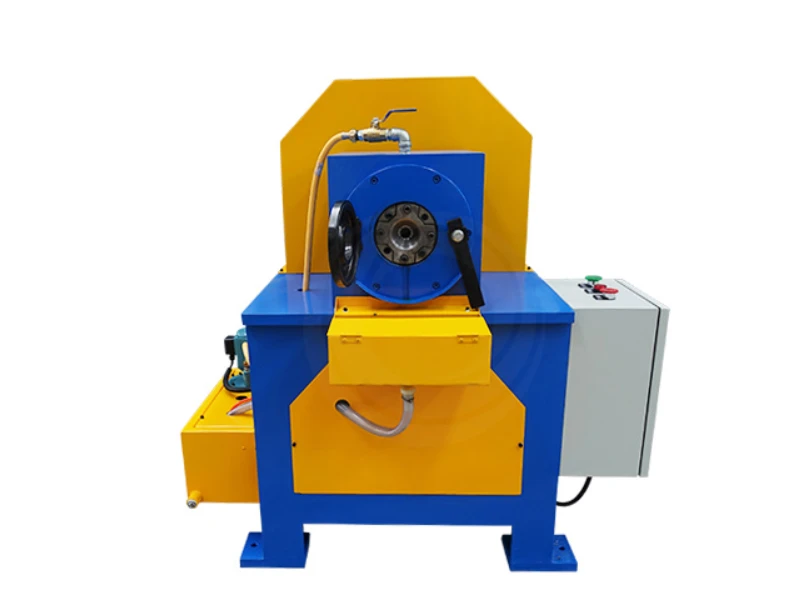

Lub tshuab swaging yog tsim rau kev ua cov khoom me me ntawm cov tshuab hluav taws xob nrog cov raj sib txawv. Nws yog tsuas yog siv rau txoj kab uas hla txo thiab taper ua cov cartridge tso cua sov los yog kub khiav cua sov. Nws lub ntsiab kom zoo dua yog qhov yooj yim thiab ceev pwm hloov, uas tuaj yeem ua tiav hauv 10 ~ 15 feeb. Cov pwm siv plaub- thooj qauv; ib lub tshuab tuaj yeem tsim cov raj cua sov ntawm cov kab sib txawv los ntawm kev hloov cov pwm.
II. Precision Philosophy ntawm 18-Chaw Nres Tsheb: Lub Hwj Chim ntawm Kev Txhim Kho Dua
18-chaw nres tsheb tsim ua raws li lub hauv paus ntsiab lus ntawm kev tsim hlau: "sib npaug thiab tsawg" deformation. Nws rhuav tshem ib qho deformation hnyav rau hauv 18 maj mam, tswj micro-deformations.
Cov txheej txheem tseem ceeb rau kev txhim kho kom zoo yog raws li hauv qab no:
|
Advantage Dimension |
Txoj Cai |
Kev cuam tshuam ncaj qha rau Cov Cuab Yeej Cuab Yeej Zoo |
|
1. Tshem tawm kev ntxhov siab sab hauv, txhim kho kev ntseeg tau ntawm cov qauv |
Tsawg deformation ib qho chaw nres tsheb tso cai rau cov hlau fibers lub sij hawm ntws thiab rov tsim dua tshiab dua li tsim kua muag. Qhov no tseem tshem tawm cov kev ntxhov siab sab hauv, ua rau cov qauv ntawm lub raj ruaj khov. |
Txhim Kho Kev Ua Neej Zoo: Thaum lub sijhawm ua cua sov rov ua dua - lub voj voog txias hauv kev siv, qhov kev pheej hmoo ntawm kev qaug zog tawg vim qhov kev ntxhov siab sab hauv raug txo qis, ua rau kev txhim kho ntev - lub sij hawm cia siab rau. |
|
2. Ua kom pom tseeb ntawm Geometric Precision & Zoo ib yam |
Kev taw qhia los ntawm 20 precision alloy log thiab 18 pcs lub cev muaj zog ua haujlwm zoo li "qib-los ntawm- kauj ruam navigation" rau lub raj, kom ntseeg tau tias muaj qhov tseeb siab heev hauv kev sib tw, ncaj, thiab qhov kawg, nrog tsawg kawg batch- mus rau -batch variation. |
Improves Performance Consistency: Consistent tube diameter across all elements means uniform density of the internal magnesium oxide (MgO) powder, ensuring even heat distribution, stable thermal conductivity, and consistent insulation. Qhov no ua rau cov khoom muaj txiaj ntsig zoo heev. |
|
3. Ua kom tiav qhov zoo tshaj plaws |
Maj mam deformation tiv thaiv ntau nto stretching, zoo tiv thaiv wrinkles, khawb, thiab micro{0}}kawg, uas ua rau ib tug du, uniform nto. |
Txhim kho Corrosion Resistance & Seal Integrity: Ib qho flawless, du nto yog lub hauv paus rau siab - zoo plating los yog vuam, txhim kho corrosion kuj. Nws kuj tseem muab lub hauv paus zoo tshaj plaws rau qhov kawg sealing (xws li, nrog iav los yog resin), tshem tawm cov kev pheej hmoo ntawm kev xau lossis hluav taws xob tsis ua hauj lwm pib los ntawm qhov tsis zoo. |
|
4. Ua kom muaj peev xwm ua kom yooj yim dua |
Ntau qhov chaw tso cai rau kev npaj cov haujlwm sib txawv xws li ua ntej- tsim, zoo shrinking, sizing, thiab straightening, ua kom tiav cov complex, siab -xav tau duab nyob rau hauv ib tug pass. |
Expands High-End Applications: Muaj peev xwm ua tau raws li cov kev xav tau ntawm siab-kawg cua sov cov ntsiab lus nrog cov kev xav tau tshwj xeeb (xws li cov tapers tshwj xeeb, cov kauj ruam profile), txhim kho cov khoom lag luam ntxiv thiab kev sib tw ua lag luam |
III. Tshaj "Tube Swaging": Tswj qhov zoo ntawm hluav taws xob cua sov raj
1. Ntau Uniform Compaction ntawm Magnesium Oxide Powder (MgO): Cov txheej txheem swaging du ua zoo li "isostatic nias," kom ntseeg tau tias cov hmoov magnesium oxide sab hauv yog uniformly thiab densely compacted, maximizing thermal conductivity thiab optimizing rwb thaiv tsev lub zog.
2. Kev tiv thaiv zoo dua ntawm cov cua sov hlau: Cov txheej txheem deformation tiv thaiv hauv cheeb tsam compression ntawm cov cua sov sab hauv los ntawm lub raj phab ntsa, tiv thaiv kev deformation lossis kev puas tsuaj thiab ua kom cov cua sov tsis sib xws.
Txawm hais tias thawj zaug peev hauv 12 lossis 18-chaw nres tsheb raj shrinking tshuab yog siab dua li cov khoom siv swaging, tus nqi nws coj deb tshaj qhov sib piv tus nqi yooj yim: nws tsim cov khoom lag luam txhim khu kev qha nrog lub neej ntev dua thiab qis dua tus nqi, thiab nws qhov siab precision thiab sib xws txo cov teeb meem thiab downtime thaum lub sij hawm sib dhos thiab kev hloov kho.
