Foshan Davinci Technology Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm 18-chaw nres tsheb tubular rhaub shrinking tshuab nyob rau hauv Suav teb, kuj txhawb kev pab customized. Thov koj xav tias dawb rau cov lag luam wholesale pheej yig 18-chaw nres tsheb tubular rhaub shrinking tshuab hauv Tshuag ntawm no los ntawm peb lub hoobkas. Rau nqe kev sab laj, tiv tauj peb.

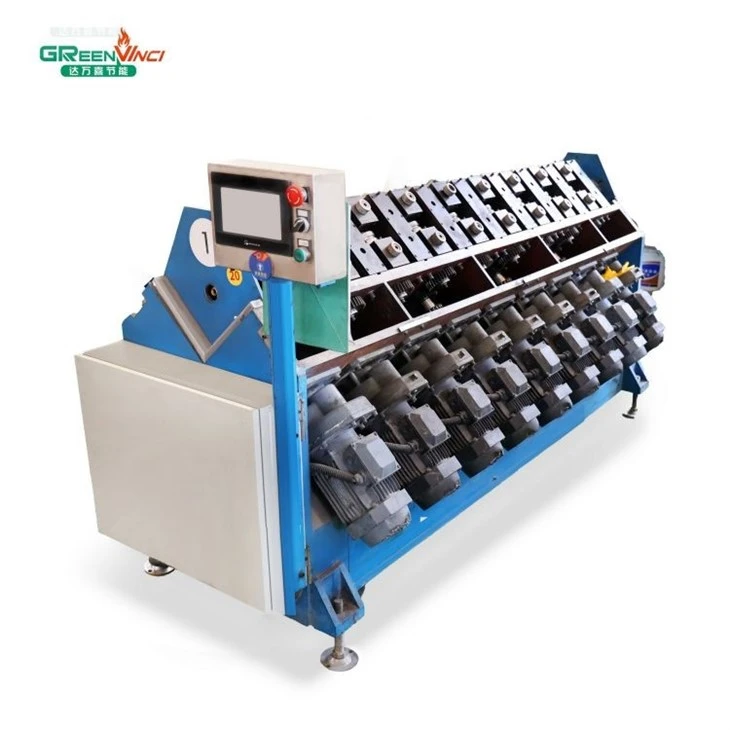

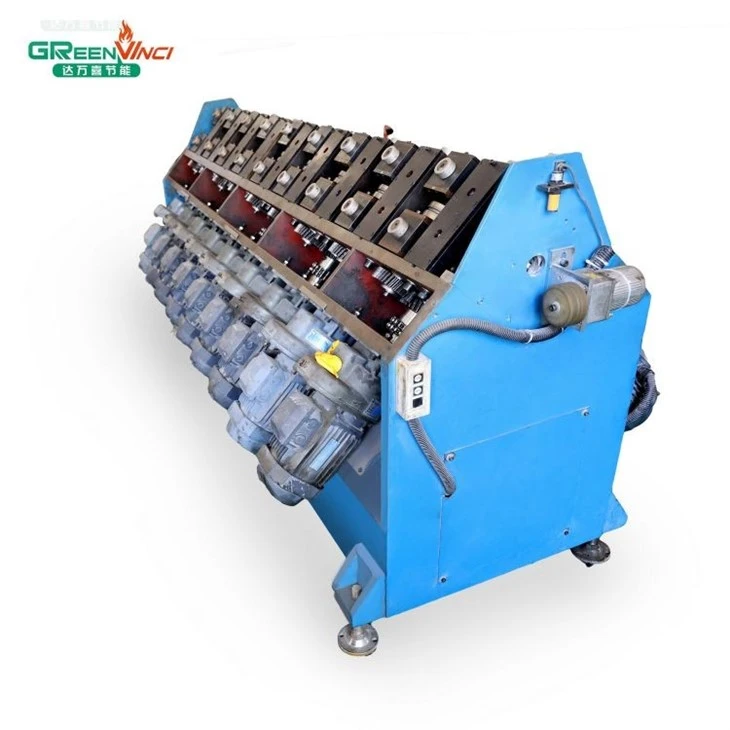

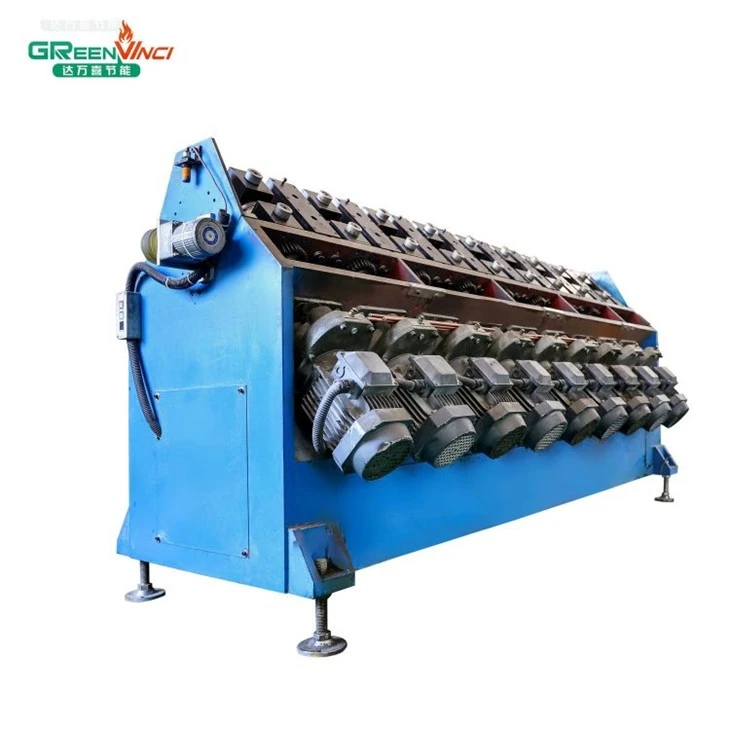

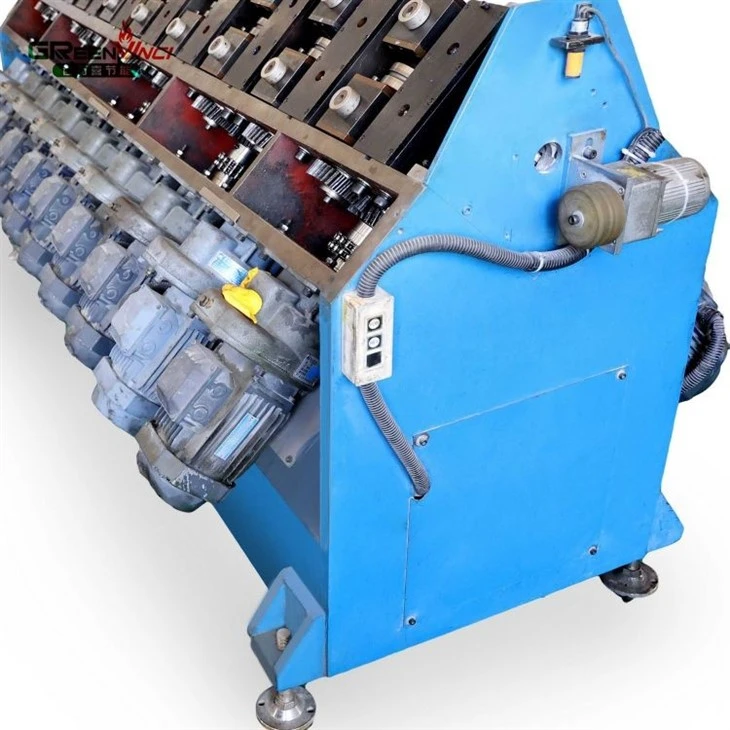

18-chaw nres tsheb Tubular rhaub Shrinking tshuab
Product Description & Specification
Qhia peb lub tswv yim tshiab 18-Chaw Nres Tsheb Tubular Heater Shrinking Tshuab - tsim los hloov pauv cov khoom siv cua sov. Cov cuab yeej siv qib siab no zoo ib yam txo cov raj sab nraud los ntawm cov txheej txheem ua kom nrawm nrawm, ua kom qhov ntom ntom ntawm magnesium oxide (MgO) hmoov hauv cov cua sov. Qhov tshwm sim yog superior thermal conductivity thiab hluav taws xob rwb thaiv tsev zog. Lub tshuab nta ib qho kev sib xyaw cam khwb cia, ua kom muaj kev ruaj ntseg tshwj xeeb thiab qhov tseeb txawm tias nyob rau hauv kev ua haujlwm siab ceev.
|
Qauv |
Fais fab mov |
Loj (rw * H) mm |
Qhov hnyav (kg) |
|
GV001-12S |
Peb theem (380V / 50Hz / 6kW) |
1200X800X1200 |
1800kg ib |
|
GV001-16S |
Peb theem (380V / 50Hz / 9kW) |
1600X800X1200 |
2500 kg |
|
GV001-18S |
Peb theem (380V / 50Hz / 12kW) |
2100X800X1200 |
2800kg ib |
Yuav Ua Li Cas Ua Haujlwm - Cov Txheej Txheem Txhim Kho Kev Txhim Kho
Cov tshuab raj raj shrinking tshuab siv ob peb qhov chaw nres tsheb, xws li 8 chaw nres tsheb, uas ua rau muaj qhov deformation loj hauv ib lub voj voog. Qhov no yooj yim ua rau muaj kev ntxhov siab nyob rau ntawm phab ntsa ntawm lub raj, qhov chaw khawb, thiab tsis sib xws lossis tsis yog - cov raj ncaj nraim tom qab shrinking, ua rau cov khoom puas. Peb 18-chaw nres tsheb tsim lov tag nrho cov shrinkage tus nqi mus rau 18 tsis tshua muaj me me deformation cov kauj ruam, siv 18 pawg ntawm alloy rollers maj mam txo txoj kab uas hla. Qhov no ua rau muaj tus nqi siab tshaj thiab zoo heev ntawm cov hlab ntsws, txo cov nqi ntau lawm.
Workflow Summary:
** Kev pub mis: ** Txhuas, hlau, tooj liab, lossis stainless hlau raj yog ntim nrog cov hmoov hauv cov hmoov filling tshuab thiab tom qab ntawd muab tso rau hauv thawj qhov chaw nres tsheb los ntawm lub tshuab pub mis.
** Kauj ruam -los ntawm- Kauj Ruam Compression:** Lub raj hla dhau los ntawm 18 khub ntawm precision alloy rollers, nrog rau txhua khub pwm txo txoj kab uas hla ntawm tsuas yog 0.1- 0.3 hli.
** Ceev nce: ** Raws li txoj kab uas hla ntawm lub raj maj mam txo qis, cov hmoov magnesium oxide (MgO) sib xyaw ua ke, ua kom qhov ntom ntom.
** Tiav thiab Tso Tawm: ** Qhov kawg ob peb qhov chaw ua tiav qhov ua tiav, ua rau cov raj tiav nrog cov kab nruab nrab zoo ib yam, du nto, thiab cov phab ntsa tuab.
Lub ntsiab kom zoo dua yog nyob rau hauv qhov tseeb hais tias txhua deformation yog heev me me, tso cai rau cov hlau lattice txaus lub sij hawm rau rearrange, yog li tshem tawm kev ntxhov siab nyob rau hauv, tiv thaiv tawg, thiab xyuas kom meej tias qhov ntom ntawm MgO hmoov txo.
Sib piv: 8-Station vs 12-Station vs 18-Station
|
Parameter |
8- Chaw nres tsheb |
12- Chaw nres tsheb |
18- Chaw nres tsheb |
|
Max txo ib kauj ruam |
0.8-1.0 hli |
0.5-0.7 hli |
0.2-0.3 hli |
|
Nto roughness (Ra) |
Tsawg dua los yog sib npaug li 1.6 μm |
Tsawg dua los yog sib npaug li 0.8 μm |
Tsawg dua los yog sib npaug li 0.4 μm |
|
Phab ntsa thickness sib txawv |
± 0.10 hli |
± 0.08 hli |
± 0.05 hli |
|
Kev txhim kho MgO ntom ntom |
hauv paus |
+10% |
+15~20% |
|
Max siv lub raj ntev |
600 hli |
900 hli |
1200 hli |
|
Pom zoo daim ntawv thov |
Cov raj luv luv, cov raj cua sov yooj yim |
Lub hom phiaj dav dav |
Siab- kawg, ntev- lub neej cua sov, xa tawm- cov khoom qib |
Vim li cas thiaj xaiv 18-Station Shrinking Tshuab
|
Qhov zoo |
Kev piav qhia |
|
± 0.05mm siab precision |
18-qib micro-txo kom paub meej qhov kawg OD kam rau ua nyob rau hauv ± 0.05mm, ua tau raws li cov kev cai nruj tshaj plaws ntawm lub rhaub tube los ua ke. |
|
Zero nto khawb |
Kev txo qis ib kauj ruam ua ke nrog siab -gloss tuag ua rau daim iav- du tiav nto - tsis muaj kev polishing thib ob xav tau. |
|
Phab ntsa thickness uniformity txhim kho los ntawm 30% + |
Cov txheej txheem kev vam meej zam dhau ib zaug -txoj kev ncab, ua rau phab ntsa thickness sib txawv ntau dua 30% zoo dua li cov cav tov. |
|
MgO ceev nce 15-20% |
Uniform compaction txhim kho thermal conductivity thiab ua rau muaj kev tiv thaiv kev tiv thaiv (txog 100MΩ lossis ntau dua). |
|
Haum rau ntxiv - raj ntev |
Muaj peev xwm ua cov raj cua sov ntev dua 1000mm nrog qis qis. |
|
Integrated cam khwb cia |
Lub tshuab tag nrho yog tsim los ntawm lub siab - lub zog cam khwb cia, tshem tawm resonance ntawm kev kub ceev thiab ncua kev pab cuam lub neej. |
Kev soj ntsuam Standards
1. Kev tshuaj xyuas qhov muag
Lub raj cua sov yuav tsum tsis muaj qhov pom kev tsis zoo lossis kev puas tsuaj. Txhua qhov chaw tawg, khawb, lossis deformities yuav tsum tau muab sau tseg, thiab lub raj cua sov yuav tsum raug tsis lees paub yog tias qhov tsis xws luag lossis kev puas tsuaj ntau dhau tom qab cov raj siv hauv 18-Stations Tubular Heater Shrinking Tshuab.
2. Dimensional soj ntsuam
Lub raj cua sov yuav tsum tau ntsuas kom ntseeg tau tias nws ua tau raws li qhov yuav tsum tau muaj. Qhov ntev, txoj kab uas hla, thiab thickness ntawm lub raj cua sov yuav tsum tsis pub dhau lub tso cai kam rau ua, raws li teev nyob rau hauv cov khoom specifications.
3. Cov khoom siv hluav taws xob
Cov khoom hluav taws xob ntawm lub raj cua sov yuav tsum tau ntsuas kom ntseeg tau tias lawv ua tau raws li qhov yuav tsum tau ua. Qhov kev tiv thaiv ntawm lub raj cua sov yuav tsum nyob rau hauv qhov kev teev tseg, thiab cov rwb thaiv tsev tiv thaiv yuav tsum tsis pub dhau qhov txwv.
4. Tightness ntawm Shrinkage Foob
Qhov nruj ntawm lub shrinkage seal yuav tsum tau kuaj xyuas kom ntseeg tau tias nws raug kaw kom zoo. Txhua qhov xau pom thaum lub sij hawm ntsuas lub siab yuav tsum tau kho, thiab lub raj cua sov yuav tsum tau rov kuaj dua.
5. Kev Ntsuas Kev Ua Haujlwm
Qhov kev ua tau zoo ntawm lub raj cua sov yuav tsum tau kuaj xyuas kom ntseeg tau tias nws tuaj yeem ua tau raws li qhov yuav tsum tau ua ntawm lub tshuab hluav taws xob mov. Cov cua kub ceev, kev txuag hluav taws xob, thiab kev siv hluav taws xob yuav tsum nyob rau hauv qhov kev teev tseg ntawm 18-Stations Tubular rhaub Shrinking Tshuab.
Lub raj dov tshuab tuaj yeem siv ua ke nrog covGV-014 Pub tshuabthiab tuaj yeem nruab nrog lub raj cim ntaus ntawv.
